Industrial Boilers for Reliable Steam Generation
Industrial processes require a steady, reliable source of steam for heating, drying, sterilisation, cooking, chemical processing and other applications. The boiler, therefore, plays an important role in maintaining consistent production and efficient energy use.
At Maanya Boilers, we manufacture industrial boiler solutions designed for different steam capacities, working pressures, fuels and industrial requirements. Our range includes biomass, solid-fuel, oil- and gas-fired boilers, along with customised solutions for specific applications.
With IBR-certified solutions, in-house manufacturing capabilities and post-sales support, we help industries select and operate boiler systems suited to their requirements.
Our Range of Industrial Boilers
Different industries have different steam requirements. A food processing unit may require a different capacity and fuel arrangement from a chemical plant or textile facility.
Maanya offers a range of boilers to address these varying requirements.
The Biomax Boiler is designed for biomass and multi-fuel applications where industries use fuels such as wood, coal, briquettes and different agro-residues.
Available in hybrid and water-tube configurations, it suits higher-capacity industrial steam requirements.
Capacity: Up to 30 TPH
Working Pressure: Up to 45 kg/cm²

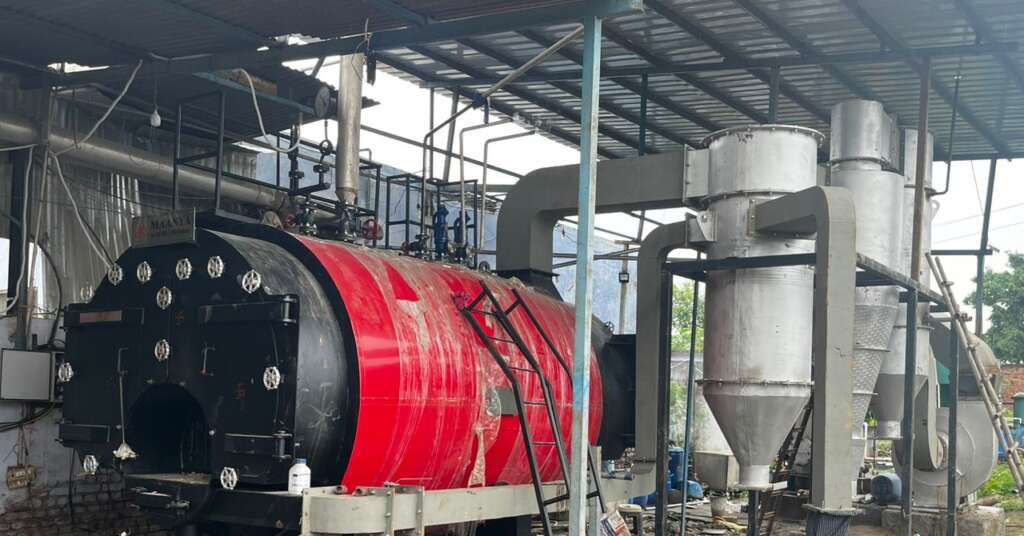

Maxpac is an industrial packaged boiler designed for applications requiring dependable steam generation from fuels such as wood, coal and biomass briquettes.
Capacity: 500 – 6,000 kg/hr
Working Pressure: 10.54 – 17.5 kg/cm²

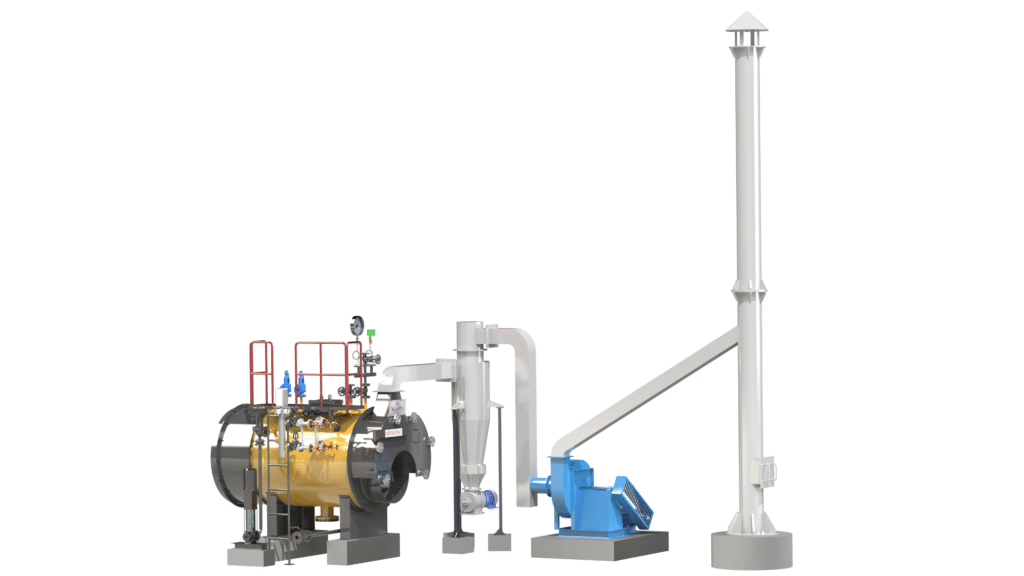

Minipac is a compact boiler designed for comparatively smaller steam requirements. Its configuration makes it suitable for industries looking for a practical steam-generation solution within a smaller capacity range.
Capacity: 300 – 400 kg/hr
Working Pressure: 7 – 10.54 kg/cm²
Petromax is designed for oil- and gas-fired applications. Depending on the configuration, it can operate on fuels including PNG, CNG, LPG, diesel and furnace oil.
Capacity: 0.5 – 10 TPH
Working Pressure: 10.54 – 21 kg/cm²

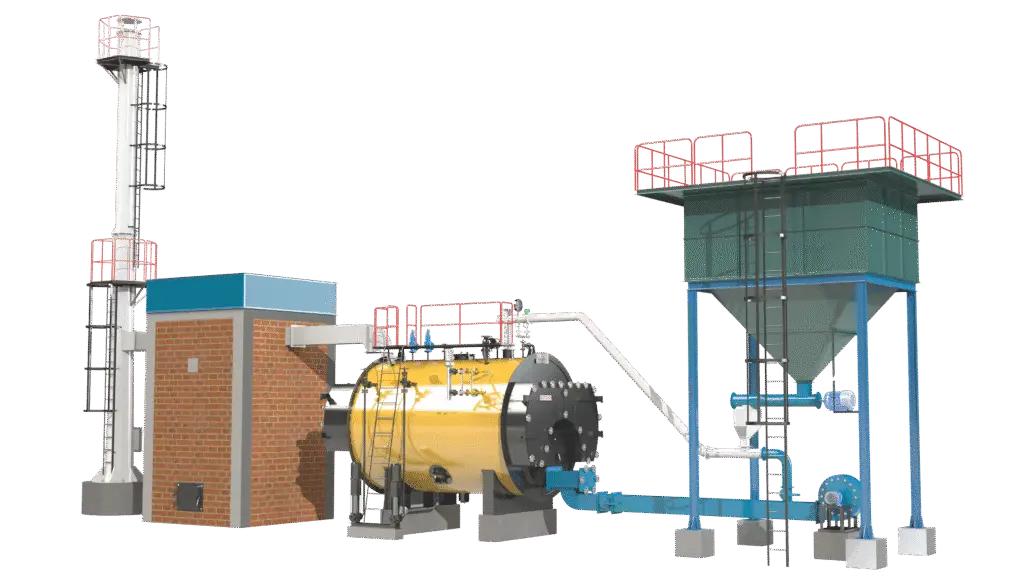

The Agripac boiler ranges provide further options for industries using biomass, agricultural residues and combinations of conventional solid fuels.
Capacity: 2 – 20TPH
Working Pressure: 10.54 – 21 kg/cm²
Agromax is designed for biomass-fired applications, particularly industries using fuels such as rice husk and fine sawdust. It provides a practical solution for steam generation where biomass is readily available.
Capacity: 2 – 5 TPH
Working Pressure: 10.54 – 14 kg/cm²
Combimac is designed for industries that require flexibility in fuel selection, with configurations suited to biomass and conventional solid fuels. It suits a range of industrial steam-generation applications.
Capacity: 2 – 6 TPH
Working Pressure: 10.54 – 17.5 kg/cm²
Choosing the Right Boiler for Your Application
Choosing between different boiler types requires more than comparing capacity and price. The boiler should match the way your plant operates.
Some of the important factors to consider include:
- Required steam capacity
- Working pressure
- Type and availability of fuel
- Steam consumption pattern
- Operating hours
- Available installation space
- Process requirements
- Applicable safety and regulatory requirements
- Future expansion plans
For factory boiler applications, these factors matter most because the boiler must integrate with existing steam distribution, fuel-handling, and utility systems.
Maanya’s engineering approach starts with understanding these requirements before recommending a suitable solution.
Fire Tube, Water Tube or Hybrid Boiler?
A boiler’s construction directly affects how it transfers heat and generates steam.
A fire tube boiler passes hot combustion gases through tubes surrounded by water. This configuration suits low- and medium-pressure applications.
In a water-tube boiler, water circulates through tubes that are exposed to hot gases. These boilers can be used for higher-capacity and higher-pressure applications.
Hybrid configurations combine design principles to address particular fuel and operating conditions.
There are different configuration options. The right choice depends on steam requirements, fuel, pressure, operating conditions and application.

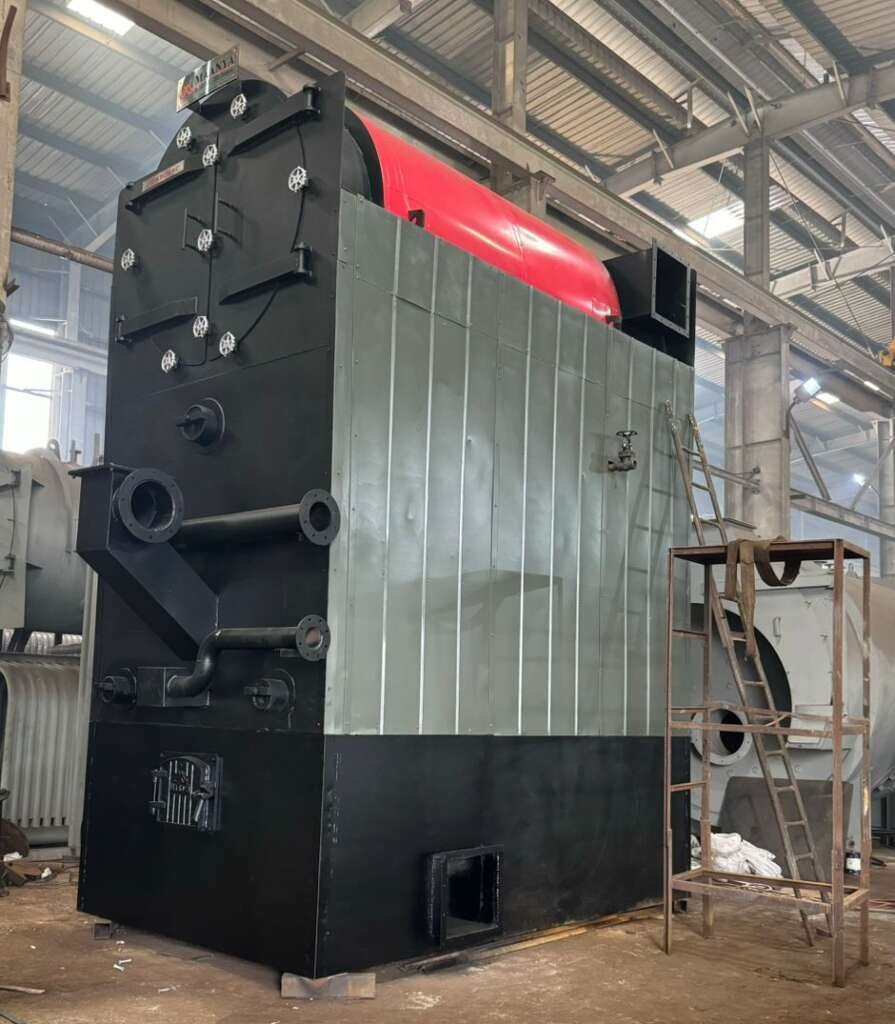

Looking for an IBR Boiler?
For industries operating steam-generating equipment under pressure, compliance is an important consideration.
An IBR boiler is subject to the Indian Boiler Regulations, which cover design, materials, fabrication, inspection, testing and certification.
Maanya offers IBR-certified boiler solutions for industrial applications. Our manufacturing and quality processes include certified welding, inspection and hydrostatic pressure testing, along with other checks carried out according to the applicable requirements.
For a new installation, replacement or capacity expansion, consider IBR requirements during planning.
Boilers Designed for Different Fuel Requirements
Fuel is an important part of boiler selection because availability, quality and operating cost can vary considerably between locations and industries.
Maanya’s boiler range supports a broad selection of fuels, including:
- Biomass
- Rice Husk
- Wood
- Wood Chips
- Bagasse
- Briquettes
- Pellets
- Coal
- Agro-Residues
- PNG
- CNG
- LPG
- Diesel
- Furnace Oil
Biomass-based boiler solutions are particularly relevant for industries with access to agricultural and other biomass residues. The right system, however, depends on the fuel’s characteristics, including moisture, ash content and consistency.
Horizontal Boiler Solutions for Industrial Applications
The physical configuration of a boiler is another consideration during plant planning.
Consider a horizontal steam boiler when its arrangement suits the available boiler-house space, installation requirements and operating conditions. However, do not consider boiler orientation in isolation. You also need to evaluate steam capacity, pressure, fuel, maintenance access, piping arrangement and future expansion.
The objective is to select a boiler that works effectively within the complete plant system.
Designed Around Your Requirements
Standard boiler models provide a starting point, but industrial requirements are not always standard.
Maanya offers boilers in modular configurations, as well as solutions customised to project requirements. The engineering team considers factors such as steam capacity, working pressure, fuel, process requirements and site conditions while developing the solution.
This approach is particularly useful when the available fuel, plant layout or process requirement calls for a configuration beyond a standard specification.
From Manufacturing to After-Sales Support
A boiler’s performance depends not only on its design but also on installation, commissioning, operation and maintenance.
Maanya supports customers across different stages of the project, including:
- Requirement Assessment: Understanding steam demand, fuel and process requirements.
- Engineering & Manufacturing: Designing and manufacturing the appropriate boiler configuration.
- Installation & Commissioning: Supporting installation and bringing the boiler into operation.
- Maintenance & Service: Providing technical support, spare parts and maintenance assistance.
Maanya also offers a 360-degree solution with post-sales support.
Finding the Right Boiler for Your Plant
Whether you are installing a new steam system, replacing an existing boiler or expanding production capacity, the selection process should begin with a clear understanding of your requirements.
Consider your:
- Steam requirement
- Working pressure
- Fuel
- Process
- Operating hours
- Available space
- Future capacity
Maanya’s range of industrial steam boilers offers options across different capacities, fuels and configurations, and our engineering team can help evaluate requirements for a customised solution.
📞 Talk to our engineering team for a tailored solution based on your industry, fuel type, and emission requirements.
👉 Explore Our Pollution Control Equipment:
https://maanyaboilers.co.in/pollution-control-equipment/
👉 Contact Maanya Boilers:
https://maanyaboilers.co.in/contact-us/
An IBR boiler is subject to the Indian Boiler Regulations, which cover design, materials, fabrication, inspection, testing and certification. [Learn more about applicable Indian boiler regulations]
Frequently Asked Questions
What is an industrial boiler?
An industrial boiler is a pressure vessel used to generate steam for industrial processes such as heating, drying, sterilisation, cooking, cleaning and chemical processing.
What are the different types of boilers that Maanya manufacture?
Maanya offers different types of boilers including Biomax, Maxpac, Minipac, Petromax, Agripac, Agromax and Combimac boilers, covering different capacities, pressures and fuel requirements.
What fuels can Maanya boilers use?
Depending on the model, Maanya boilers can use biomass, rice husk, wood, coal, briquettes, pellets, agro-residues, PNG, CNG, LPG, diesel and furnace oil.
How do I select the right boiler for my factory?
The selection depends on steam capacity, working pressure, fuel, process requirements, operating hours, available space and future expansion plans.
Does Maanya offer customised boilers?
Yes. Maanya provides modular and customised boiler configurations based on project requirements.
Does Maanya offer IBR boilers?
Yes. Maanya provides IBR-certified boiler solutions for applicable industrial requirements.
